Accessories > Motors > Outrunner Brushless Motor
Boat Parts > Engines and Accessories

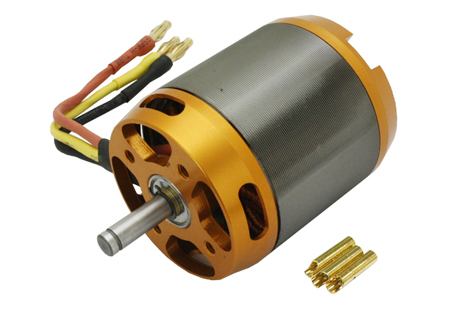

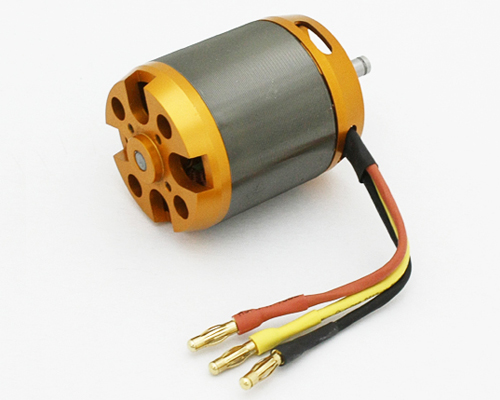

TOPEDGE 5065 Outrunner Brushless Motor-KV650
Item No: OB5065-04
Packing Size: 150*65*55mm
Gross Weight: 412g
Brand: TOPEDGE
Description

Specifications:

KV: 650rpm/v
Non-load Current: 3.8A
Working Current: 80A
Shaft Diameter: 6mm
N.W.: 364g
G.W.: 412g

Parameters:

KV Non-load
Current
Max
Working Current
Loaded
Propeller
Input
Voltage
Working
Current
Pull Output Power Rated Current Weight Shaft
(mm)
Internal
Resistance
650 3.8A 80A 1560 11.1V 30A 2200g 333w 68A 364g 6 0.0105
12.6V 38A 2800g 478.8w
14.8V 49A 3800g 725.2w
16.8V 60A 4700g 1008w
1380 11.1V 26A 1650g 288.6w
12.6V 33A 2050g 415.8w
14.8V 41A 2900g 606.8w
16.8V 50.5A 3650g 848.4w
18.5V 60A 4350g 1110w
1540 11.1V 24A 1700g 266.4w
12.6V 28A 2200g 352.8w
14.8V 35A 3000g 518w
16.8V 42.5A 3800g 714w
18.5V 50.5A 4600g 934.3w
21V 62.5A 5800g 1312.5w
