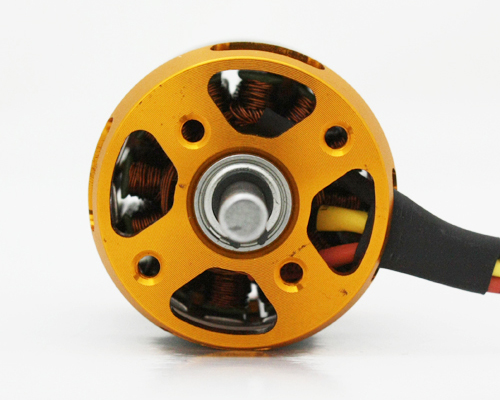

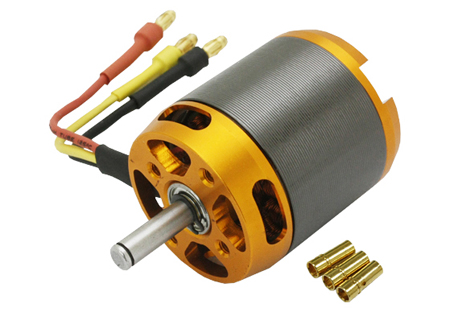

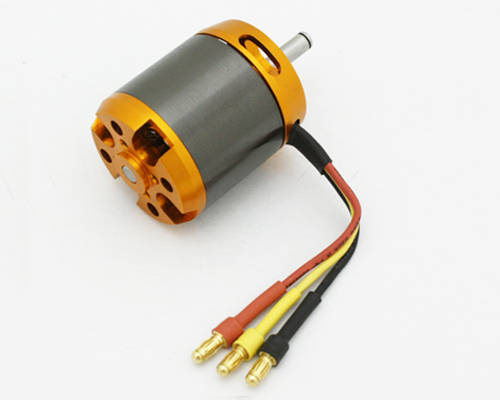

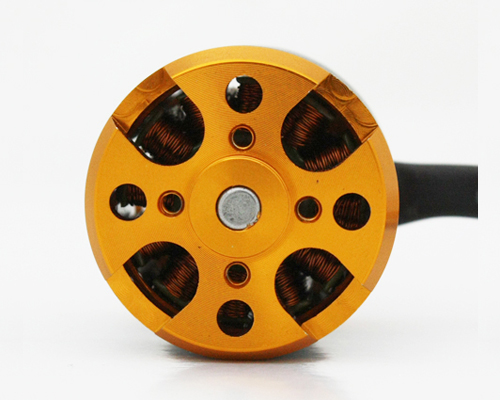

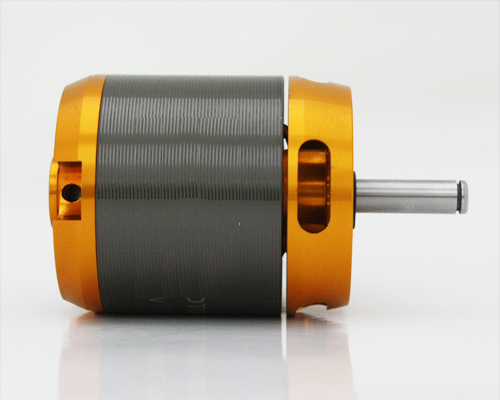

TOPEDGE 3542 Outrunner Brushless Motor-KV560
|
|
|
| Item No: |
OB3542-10 |
| Packing Size: |
144*53*53mm |
| Gross Weight: |
169g |
| Brand: |
TOPEDGE |
|
|
|
|
|
| Description |
|
Specifications:
KV: 560rpm/v
Non-load Current: 0.5A
Working Current: ≤25A
Shaft Diameter: 5mm
N.W.: 135g
G.W.: 169g
Parameters:
| KV |
Non-load
Current |
Max
Working Current |
Loaded
Propeller |
Input
Voltage |
Working
Current |
Pull |
Output Power |
Rated Current |
Weight |
Shaft
(mm) |
Internal
Resistance |
| 560 |
0.5A |
25A |
1540 |
11.1V |
10A |
1000g |
111w |
21.5A |
135g |
5 |
0.1035Ω |
| 12.6V |
12A |
1200g |
151.2w |
| 14.8V |
15.5A |
1600g |
229.4w |
| 16.8V |
18.5A |
2000g |
310.8w |
| 18.5V |
19.5A |
2300g |
360.8w |
| 22.2V |
23A |
2750g |
510.6w |
| 25.2V |
27A |
3250g |
680.4w |
| 1680 |
11.1V |
17A |
1550g |
188.7w |
| 12.6V |
20A |
1900g |
252w |
| 14.8V |
24A |
2200g |
355.2w |

Size Reference:
Unit: mm
|
|
