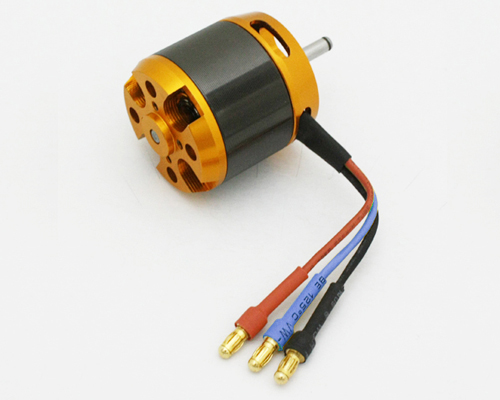

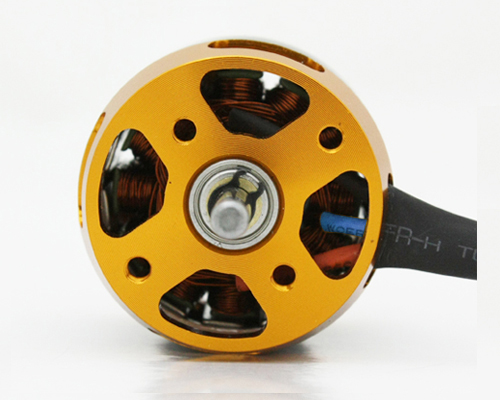

TOPEDGE 3536 Outrunner Brushless Motor-KV1520
|
|
|
| Item No: |
OB3536-05 |
| Packing Size: |
140*52*52mm |
| Gross Weight: |
136g |
| Brand: |
TOPEDGE |
|
|
|
|
|
| Description |
|
Specifications:
KV: 1520rpm/v
Non-load Current: 1.5A
Working Current: ¡Ü55A
Shaft Diameter: 4mm
N.W.: 95g
G.W.: 136g
Parameters:
| KV |
Non-load
Current |
Max
Working Current |
Loaded
Propeller |
Input
Voltage |
Working
Current |
Pull |
Output Power |
Rated Current |
Weight |
Shaft(mm) |
Internal
Resistance |
| 1520 |
1.5A |
55A |
0945 |
7.4V |
19A |
750g |
140.6w |
47A |
95g |
Ø4 |
0.0207¦¸ |
| 8.4V |
23A |
1000g |
193.2w |
| 11.1V |
30A |
1350g |
333w |
| 1147 |
7.4V |
36A |
1530g |
266.4w |
| 8.4V |
44A |
1820g |
369.6w |

Size Reference:
Unit: mm
|
|
