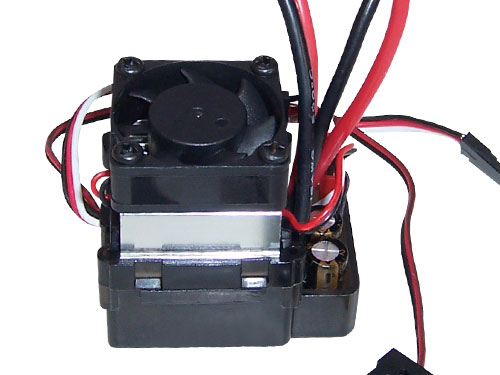

300A High Voltage Brushed Electronic Speed Controller
|
|
|
| Item No: |
SC301 |
| Dimensions: |
47.5*35.5*32.5mm |
| Gross Weight: |
75g |
| Brand: |
TOPEDGE |
| Forward 300A, Reverse 150A |
|
|
|
|
|
| Description |
|
Features:
This ESC is simple to setup and for easy operation. When switched on, the ESC automatically search neutral point. When auto setup is completed, the motor sounds "DO" "RE" "MI" music indicating neutral point is reached.
Specifications:
Input: 6V - 14.4V [DC]
BEC: 6V 3A
Current Drain: 300A(forward),Max(spark):300A;150A(back,spark)
Size: 47.5*35.5*32.5mm
Weight: 73g
Applicable: 540/20T motor or above

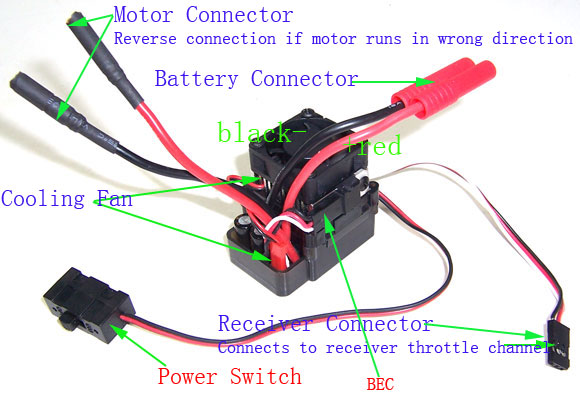

Wire Diagram:
|
|
